K2 RF PA CH 4S SET roof fastener with 3 height adjustments NR..: 0133188

K2 Systems GmbH

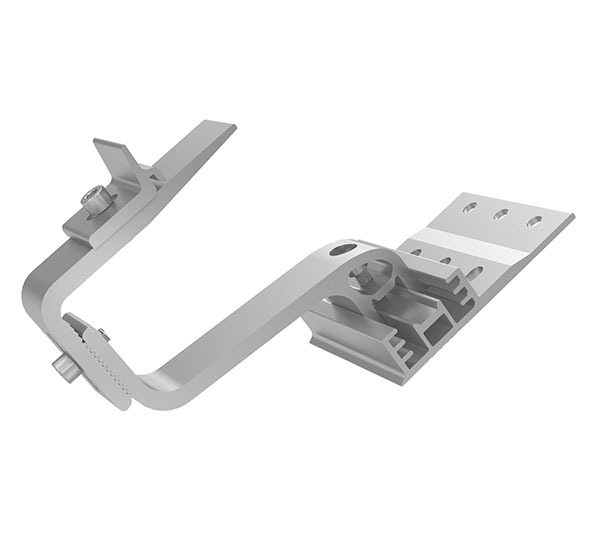

RF PA CH 4S SET

roof fastener with 3 height adjustments

Roof fastener with 3x vertically adjustable base plate (40,47,54 mm) and 30 mm adjusment on the bracket. Total hight adjustment: 120.5 mm - 165.1 mm. For narrow rafter from 36 mm. With pre-assembled K2 Climber 36/50 and allen bolt. Used for fixation on the K2 mounting rail type K2 SingleRail and CrossRail.
Material: Aluminium EN AW-6063 T66; Stainless steel A2

Base plate width: 100 mm
Height under bracket: 40/47/54 mm
Bracket height: 55-85 mm
Total height: 120,5-165 mm
Bracket depth: 83 mm
