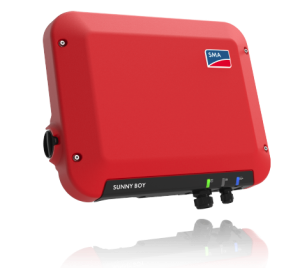

SMA SB 3.6-1AV-41 string inverter SMA SB 3.6 (Aantal MPPT:2)
€ 1.487,50
Delen
Omschrijving
SMA
SB 3.6-1AV-41
string inverter SMA SB 3.6
Item no. 0114696
PV string inverter for single-phase grid feed-in, Pac,r/Sac, max 3.68
kW/3.68kVA, transformerless,with reactive power, WLAN and Ethernet based Speedwire/Webconnect communication interface, incl. SMA Modbus and SunSpecprotocol, integrated Webserver, RS485 and TS4-communication interface, Multistring Technology, DC connection SUNCLIX, incl. DC disconnect
Vendor item no.: SB3.6-1AV-41
| Manufacturer: | SMA |
| Warranty: |
5-year manufacturer guarantee |
| Max. input voltage (V) | 600 |
| Min. MPP voltage (V) | 130 |
| Max. MPP voltage (V) | 500 |
| Max. generator output (kW) | 5.5 |
| AC nominal output (kVA) | 3.68 |
| AC maximum output (kVA) | 3.68 |
| Max. efficiency (%) | 97 |
| Europ. efficiency (%) | 96.5 |
| Protection class | IP65 |
| Length (mm) | 470 |
| Width (mm) | 435 |
| Height (mm) | 176 |
| Weight (kg) | 17.5 |
| Interface 1 | RS485 |
| Interface 2 | Ethernet |
| Max. string count | 4 |
| MPP tracker count | 2 |
| Model | transformerless |
| Display | w/o display |
| Feed-in phases | 1 |
| Boost converter | Yes |
| Bedienungsanleitung | ||
| Operations Manual | NL | |
| Warranty Terms | ||
| Garantiebedingungen | ||
| Installatiehandleiding | ||
| Datenblatt | ||
| Datasheet | NL |
Leveransierspagina: ZIE
