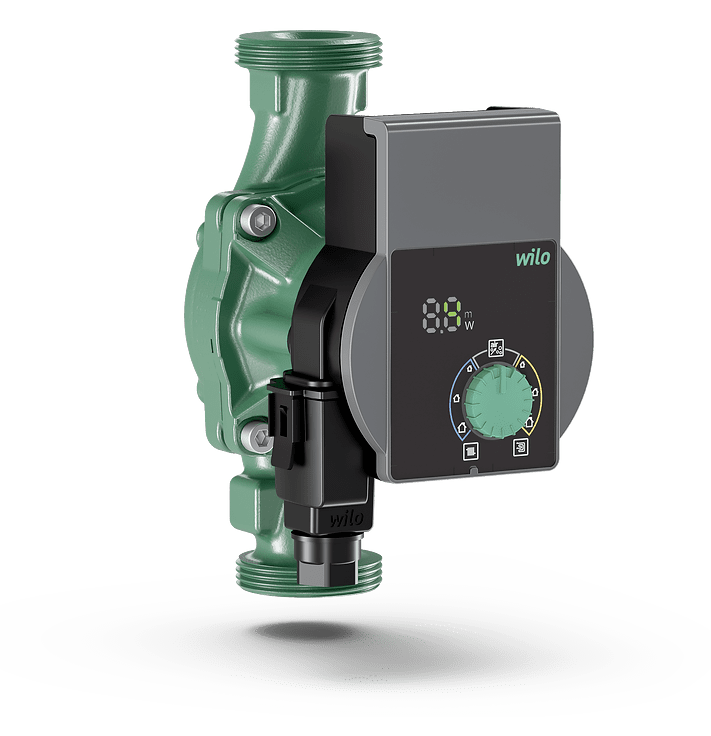

Wilo Yonos PICO1.0 25/1-6 electronic circulator pump 1,1/2"-180mm (4248084)
Wilo Yonos PICO1.0 25/1-6 electronic circulator pump (4248084)
- Product code: 4248084
- EAN : 4062679182025
- Manufacturer code: 4248084
- Warranty: 2 years
Electronic circulating pump Wilo Yonos PICO1.0 25 / 1-6. For use in heating systems. PDF
-Technical Details ZIE
| Connection pump size | 1 1/2" |
| Connection type | Male thread |
| Fluid temperature | 95 °C |
| Head max | 6 m |
| Port-to-port lenght | 180 mm |
| Pressure | 10 bar |
| Pump flow | 3,6 m3/h |
| Pump lightness | DN 25 |
| Pump power supply | 230 VAC |
| Weight | 1.80 kg |
The Wilo Yonos PICO1.0 circulator is the basic type in a range of economical and highly efficient pumps. Min. pump power is only 4W! The Yonos Pico pump is used in all common heating systems, air conditioners and industrial circulation systems . Other suitable applications for the use of the pump are family houses and semi-detached houses. The pump allows both manual and automatic operation (see below).
The pump meets the requirements of the ErP directive.
Characteristics
- Manual restart is replaced by automatic, so the manual unlock button has disappeared.
- The pump can no longer be set to one of three constant speeds. Instead, the pump is set to pump bleed modes.
- The pump no longer measures the flow. The pump display thus only shows the power input, head setting and error messages.
Automatic functions
- Continuous power adjustment depending on operating mode
- Automatic unlocking
Manual functions
- Operating mode setting
- Pump power setting
- Venting function
Pump properties
- Fast el. connection thanks to the WILO connector
- Venting function
- Particle filter
- Blockage resistant motor
- Power indication W
- Display of the current transport height
- Display of fault codes
Scope of delivery
- Pump
- WILO connector for faster power connection
- Rubber seal
- Installation and operating instructions
| Hydraulic data | |
|---|---|
| Maximum operating pressure PN | 10 bar |
| Head max H max | 6.0 m |
| Flow max Q max | 3.5 m³/h |
| Minimum suction head at 50 °C m | 0.5 m |
| Minimum suction head at 95 °C m | 3 m |
| Minimum suction head at 110 °C | 10 m |
| Min. fluid temperature Tmin | -10 °C |
| Max. fluid temperature Tmax | 95 °C |
| Max. fluid temperature at max. ambient temperature of +25 °C Tmax | 95 °C |
| Max. fluid temperature at max. ambient temperature of +40 °C Tmax | 95 °C |
| Min. ambient temperature Tmin | -10 °C |
| Max. ambient temperature Tmax | 40 °C |
| Motor data | |
|---|---|
| Energy efficiency index (EEI) | 0.20 |
| Mains connection | 1~230 V ±10%, 50/60 Hz |
| Rated power P2 | 30 W |
| Min. speed nmin | 700 1/min |
| Max. speed nmax | 4200 1/min |
| Power consumption P1 min | 4 W |
| Power consumption P1 max | 40 W |
| Interference emission | EN 61000-6-3 |
| Interference immunity | EN 61000-6-2 |
| Electromagnetic compatibility | EN 61800-3 |
| Threaded cable connection | 1 x PG11 |
| Insulation class | F |
| Protection class | IPX4D |
| Materials | |
|---|---|
| Pump housing | Grey cast iron |
| Impeller | PP-GF40 |
| Shaft | Stainless steel |
| Bearing | Carbon, metal-impregnated |
| Installation dimensions | |
|---|---|
| Pipe connection on the discharge side DNd | G 1½ |
| Pipe connection on the suction side DNs | G 1½ |
| Port-to-port length L0 | 130 mm |
