Luxor ECO LINE HALF CELL M108/405W high-performance (1722x1134x30) €.0,558W
€ 227,50
per stuk
Minimum aantal is 4 voor € 910,00
Delen
Omschrijving
Luxor

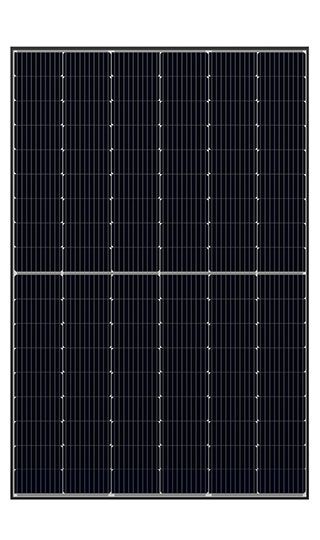

ECO LINE HALF CELL M108/405W

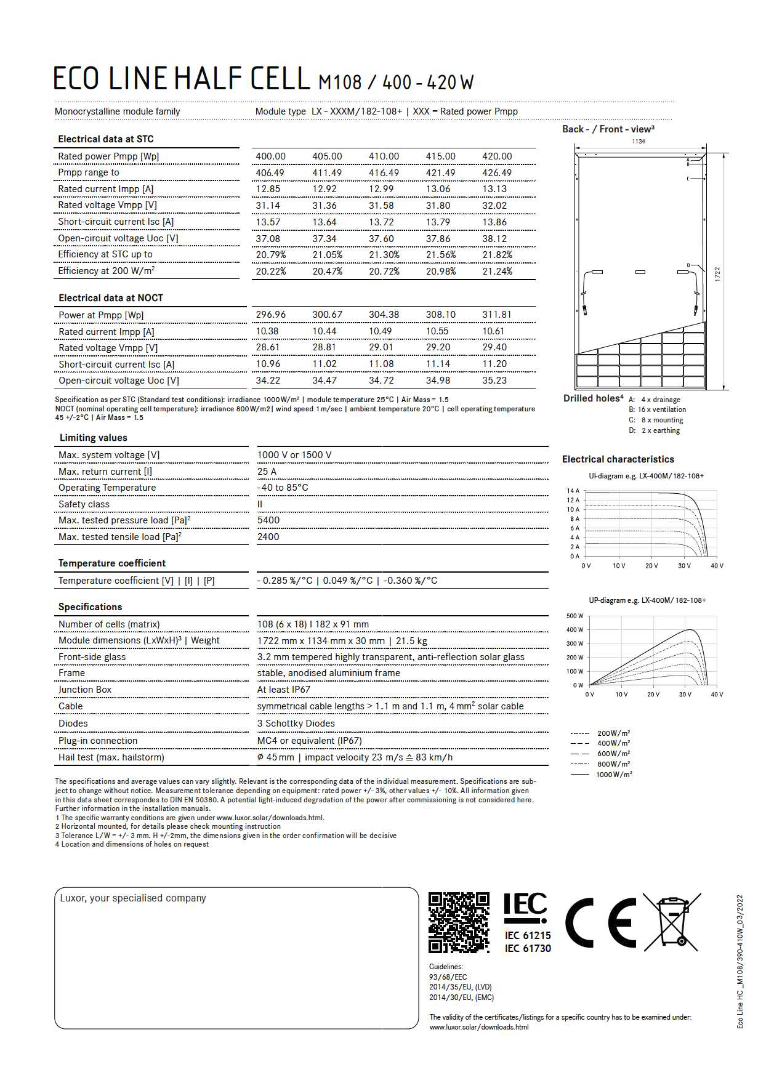

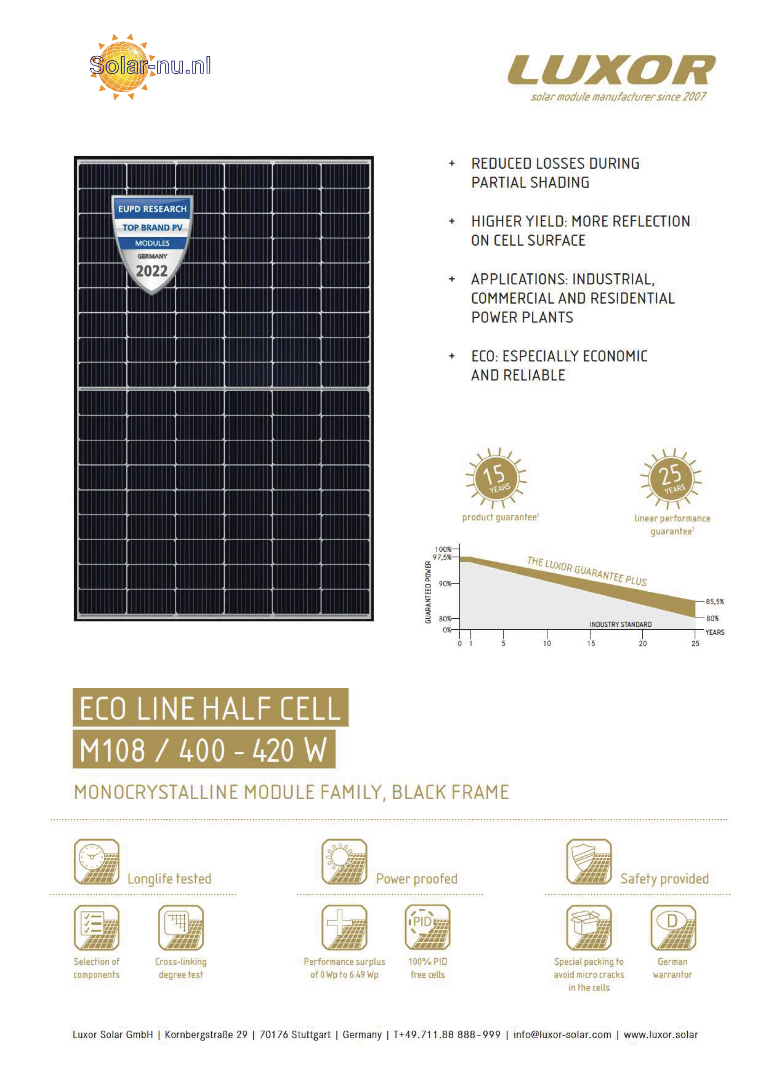

LUXOR high-performance solar module PDF
Item no..: 0152300
Supplier item: 85414300
Including cable (ca. 120 cm) and MC4 connector system
Thermally pre-stressed solar glass
Stable anodized black alu-frame
High-performance solar cells
Version with 10 busbars
| Number of cells along: | 18 |
| Lenght of Cables (cm): | 120 |
| Number of cells across: | 6 |
| Power Rating Pmax (Wp): | 405 |
| Power Tolerance: | 6,00 |
| Cell width (mm): | 182,00 |
| Nominal Voltage Umpp (V): | 31,36 |
| Cell length (mm): | 91,00 |
| Nominal Current Impp (A): | 12,92 |
| Max system voltage (V): | 1000 |
| Cell Type: | monocrystalline |
| Short Circuit Current Isc (A): | 13,64 |
| Connector Type: | MC4 |
| Open Circuit Voltage Uoc (V): | 37,34 |
| Temperature Coefficient Isc (%/K): | 0,05 |
| Frametype: | standard |
| Temperature Coefficient Pmpp (%/K): | -0,36 |
| Temperature Coefficient Uoc (%/K): | -0,29 |
| Manufacturer: | Luxor |
| Manufacturer Item Name: | |
| Supplier item: | |
| Certificate 1: | IEC/TÜV |
| Certificate 2: | Protection Class 2 |
| Intrastat Product number: | 85414300 |
| Frame Color: | black |
| Backsheet Color: | white |
| Amount per Pallet: | 35 |
| Amount Pal. p. Cont.: | 26 |
| Amount per Container: | 910 |
| Pack. Material: | |
| Pal. Dim. LxBxH (mm): | |
| Pal. Weight (kg): |
| Height (mm): | 30 |
| Length (mm): | 1722 |
| Weight (kg): | 21,50 |
| Width (mm): | 1134 |
| Performance Warranty (yr): | 25 |
| Warranter: | Luxor Solar GmbH |
| Product Warranty (yr): | 15 |
