Product zoeken
SolarEdge SPV370-R60DBMG + SolarEdge integrated optimizer (1755x1038x40) €0,865W
€ 337,50
€ 330,75
per stuk
Minimum aantal is 10 voor € 3.307,50
Delen
Omschrijving
SolarEdge
SPV370-R60DBMG + SolarEdge
with integrated optimizer

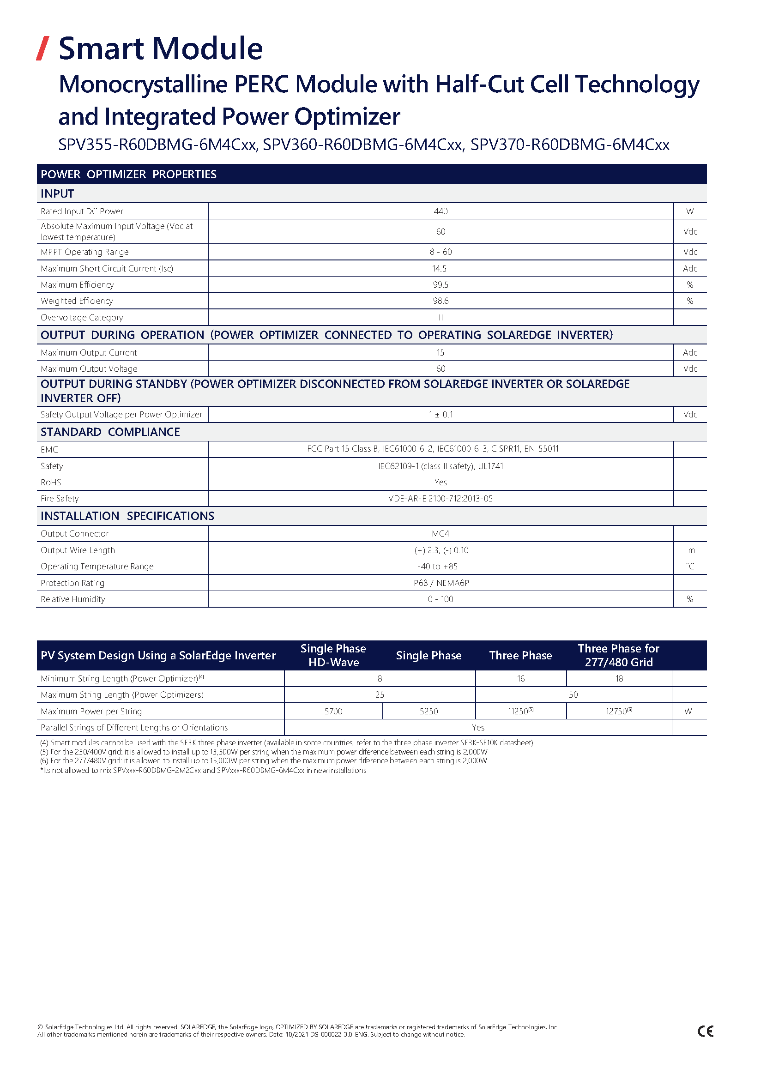

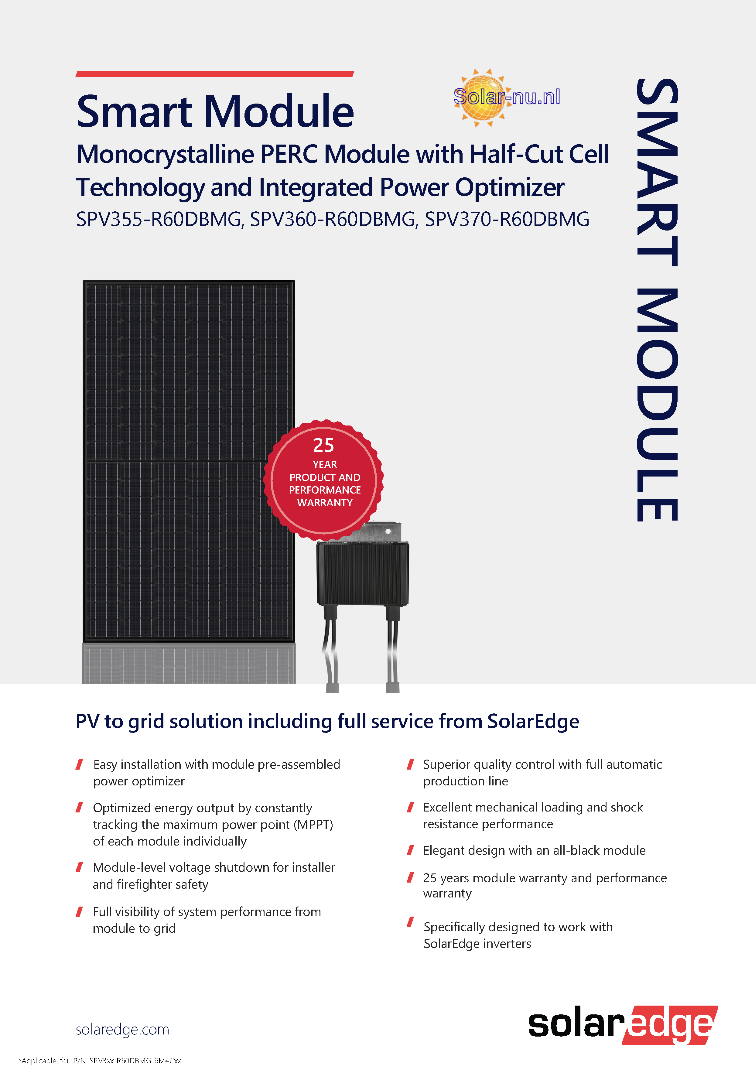

Supplier item: SPV370-R60DBMG PDF
BESCHIKBAAR PER FEBRUARI-2023
***the module can only be installed in connection with a SolarEdge inverter***
including cable (ca. 230 cm (+) / 10 cm (-)) and MC4 connector system
stable anodized black alu-frame
high-performance solar cells
stable anodized black alu-frame
high-performance solar cells
| Number of cells along: | 20 |
| Power Rating Pmax (Wp): | 370 |
| Nominal Current Impp (A): | 10,83 |
| Short Circuit Current Isc (A): | 11,29 |
| Cell width (mm): | 166,00 |
| Lenght of Cables (cm): | |
| Nominal Voltage Umpp (V): | 34,17 |
| Temperature Coefficient Uoc (%/K): | -0,27 |
| Open Circuit Voltage Uoc (V): | 41,96 |
| Temperature Coefficient Isc (%/K): | 0,05 |
| Cell length (mm): | 83,00 |
| Power Tolerance: | 5,00 |
| Cell Type: | monocrystalline |
| Number of cells across: | 6 |
| Frametype: | standard |
| Connector Type: | MC4 |
| Max system voltage (V): | 1000 |
| Temperature Coefficient Pmpp (%/K): | -0,33 |
| Backsheet Color: | black |
| Frame Color: | black |
| Intrastat Product number: | 85414300 |
| Supplier item: | SPV370-R60DBMG |
| Manufacturer: | SolarEdge |
| Certificate 1: | IEC/TÜV |
| Certificate 2: | Protection Class 2 |
| Weight (kg): | 22,00 |
| Width (mm): | 1.038,00 |
| Length (mm): | 1.755,00 |
| Pal. Dim. LxBxH (mm): | 1.200,00 |
| Height (mm): | 40,00 |
| Product Warranty (yr): | 25 |
| Warranter: | SolarEdge |
| Performance Warranty (yr): | 25 |
